Focusing on stainless steel water pumps

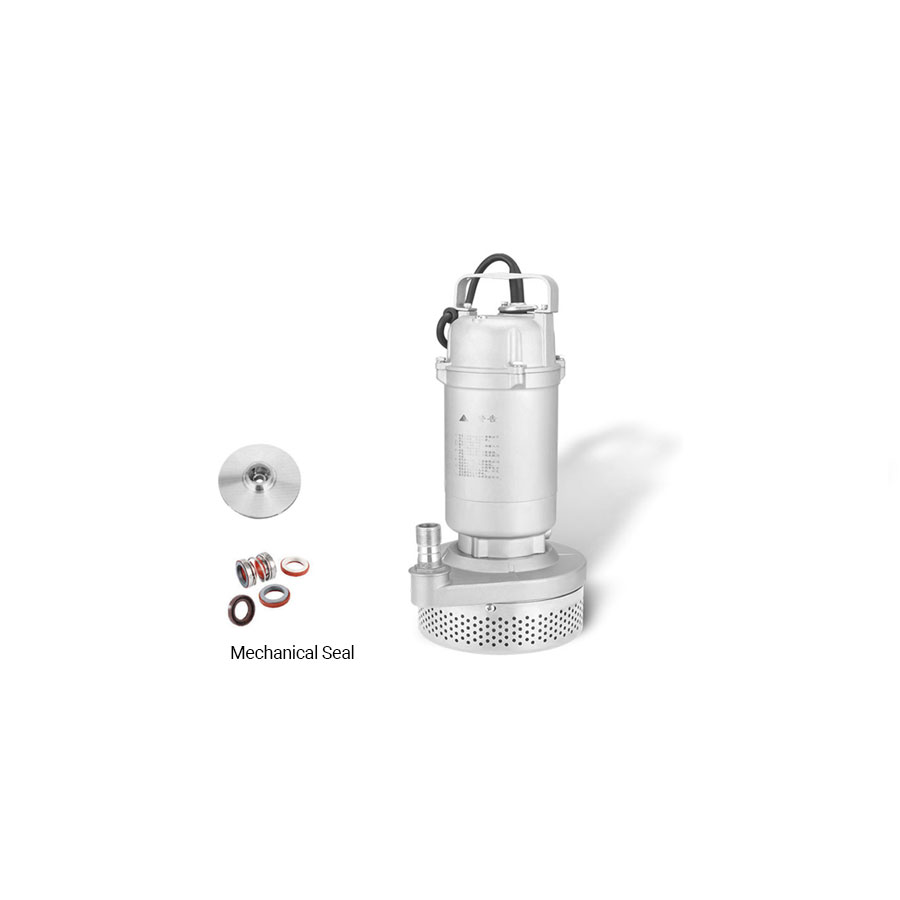

The Q(D)X-S all-stainless steel compact submersible pump is precision cast entirely from stainless steel, making it corrosion-resistant, environmentally friendly, and durable, with a small footprint and attractive appearance.
1. It adopts fluorine rubber double-end mechanical seals and fluorine rubber radial "O" ring seals, effectively providing a protective seal against harsh liquids.
2. The motor uses vacuum impregnation to achieve Class F insulation, and has a built-in thermal protection device, greatly extending the pump's service life.
3. Anti-corrosion cables, PTFE mechanical seals, and high-temperature resistant motors can be customized according to customer requirements. (Suitable for use in environments with liquid temperatures ≤100℃).
4. The use of a stainless steel closed stamping welded impeller greatly increases the head.
It’s suitable for general corrosive media in industrial and mining enterprises, food industry, seawater aquaculture, landscape engineering, deep well water extraction, chemical plating, farmland irrigation, etc.
1. The submerged depth from the center of the impeller should not exceed 5m;
2. The temperature of the conveying medium should not be higher than +40℃;
3. The PH value of the conveying medium is 304 (4-10) and 316 (2-13);
4. The kinematic viscosity of the conveying medium is 7x10-7-23x10-6m2/s.
