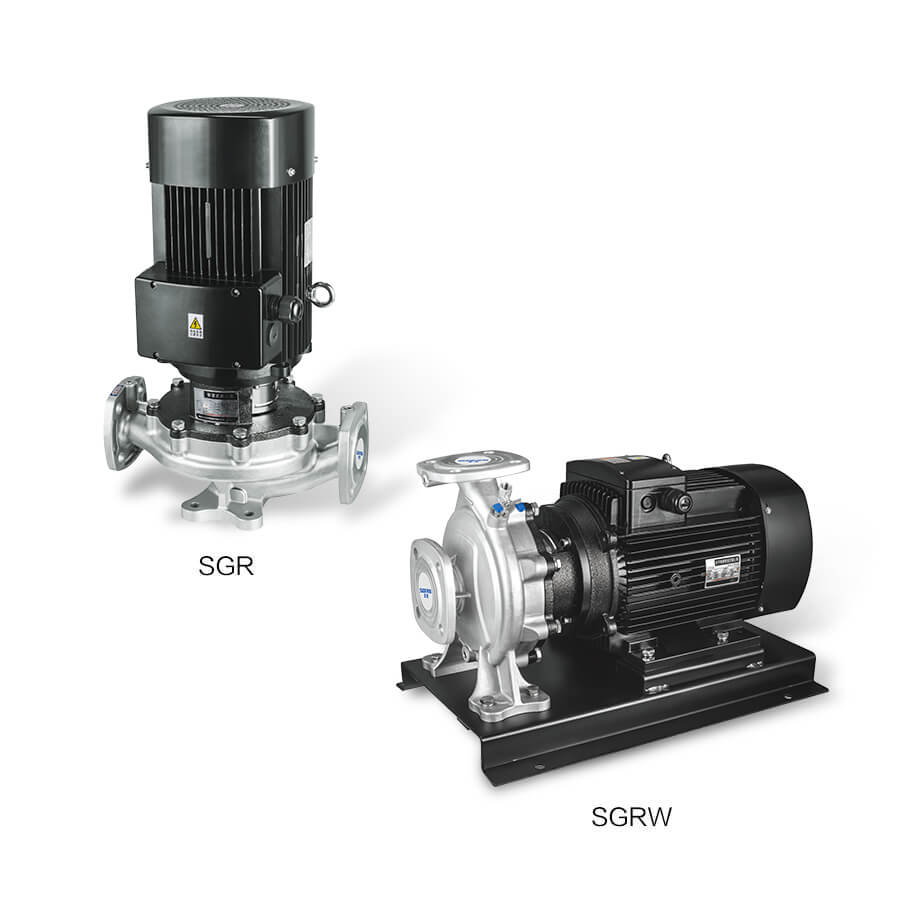

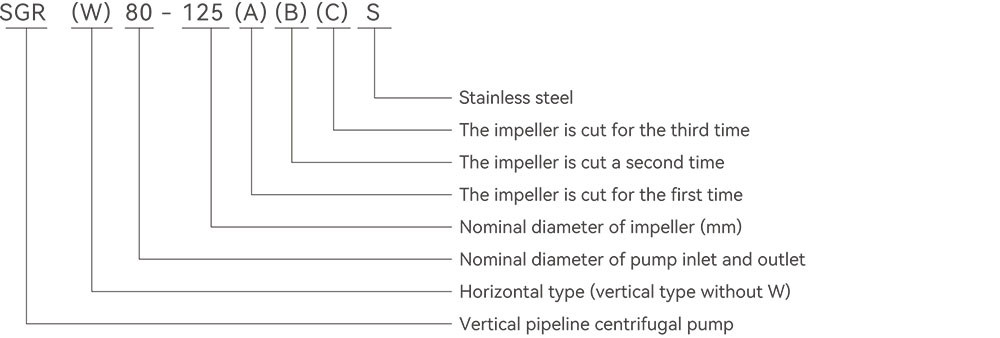

The SGR(W)-S series stainless steel vertical and horizontal pipeline centrifugal pump (hereinafter referred to as the electric pump) is a new generation of single-stage centrifugal pump product designed by the company. It is divided into basic and cutting types, which can replace conventional centrifugal pumps used in general occasions. According to different customer needs, PTFE mechanical seals and explosion-proof motors can be customized.
1. The pump has a compact structure, small size, and beautiful appearance. Its vertical structure installation occupies a small area, and its center of gravity coincides with the center of the pump foot, thus enhancing the operating stability and service life of the pump.
2. The inlet and outlet diameters are the same and on the same centerline, making installation convenient without changing the pipeline. It can be directly installed at any position of the pipeline like a valve. The motor with a rain cover can also be placed outdoors.
3. The motor and pump are coaxial, simplifying the intermediate structure and increasing operational stability. The impeller has excellent dynamic and static balance, resulting in low vibration, reduced noise during operation, extended bearing life, and improved operating environment.
4. The motor adopts an efficient heat dissipation cast aluminum casing, imported bearings, stainless steel 316 welded rotor shaft, fluororubber "O" rings, fluororubber mechanical seals, and all flow parts are made of precision cast stainless steel.
5. Maintenance is convenient without dismantling the pipeline. Maintenance can be performed by simply removing the connecting frame and taking out the motor and transmission components.
6. Its unique structure and careful design not only reduce the pump room area and improve space utilization but also significantly save infrastructure investment.
The SGR(W)-S series stainless steel vertical and horizontal pipeline centrifugal pumps can be used to transport clear water and other liquids with similar physicochemical properties to clear water. They are suitable for industrial and urban water supply and drainage, water pressurization and delivery in high-rise buildings, landscape irrigation, fire protection pressurization, long-distance transportation, HVAC refrigeration, and other hot and cold water circulation pressurization and equipment support, as well as pumps for boiler hot water pressurization and delivery in energy, metallurgy, chemicals, textiles, papermaking, hotels, restaurants, and other industries, and pumps for urban heating system circulation. The operating medium temperature is T≤103℃.
1. Applicable medium: The volume content of insoluble solids should not exceed 0.1% of the unit volume, and the particle size should not be greater than 0.2mm. (If the medium contains fine particles, a wear-resistant mechanical seal must be used. Please specify this when ordering.)
2. The ambient temperature should not exceed 40℃, the relative humidity should not exceed 95%, and the altitude should not exceed 1000m.
3. The PH value of the transportation medium for 304 is (4-10) and for 316 is (2-13).
